Operating Voltage
2.7~5.5V
Temperature Measurement Range
-55~+125℃
Typical Error @3.0V
±0.5℃@-10~+85℃
±0.8℃@-55~+125℃
±0.8℃@-55~+125℃
Compatible
DS18B20
Package
TO-92

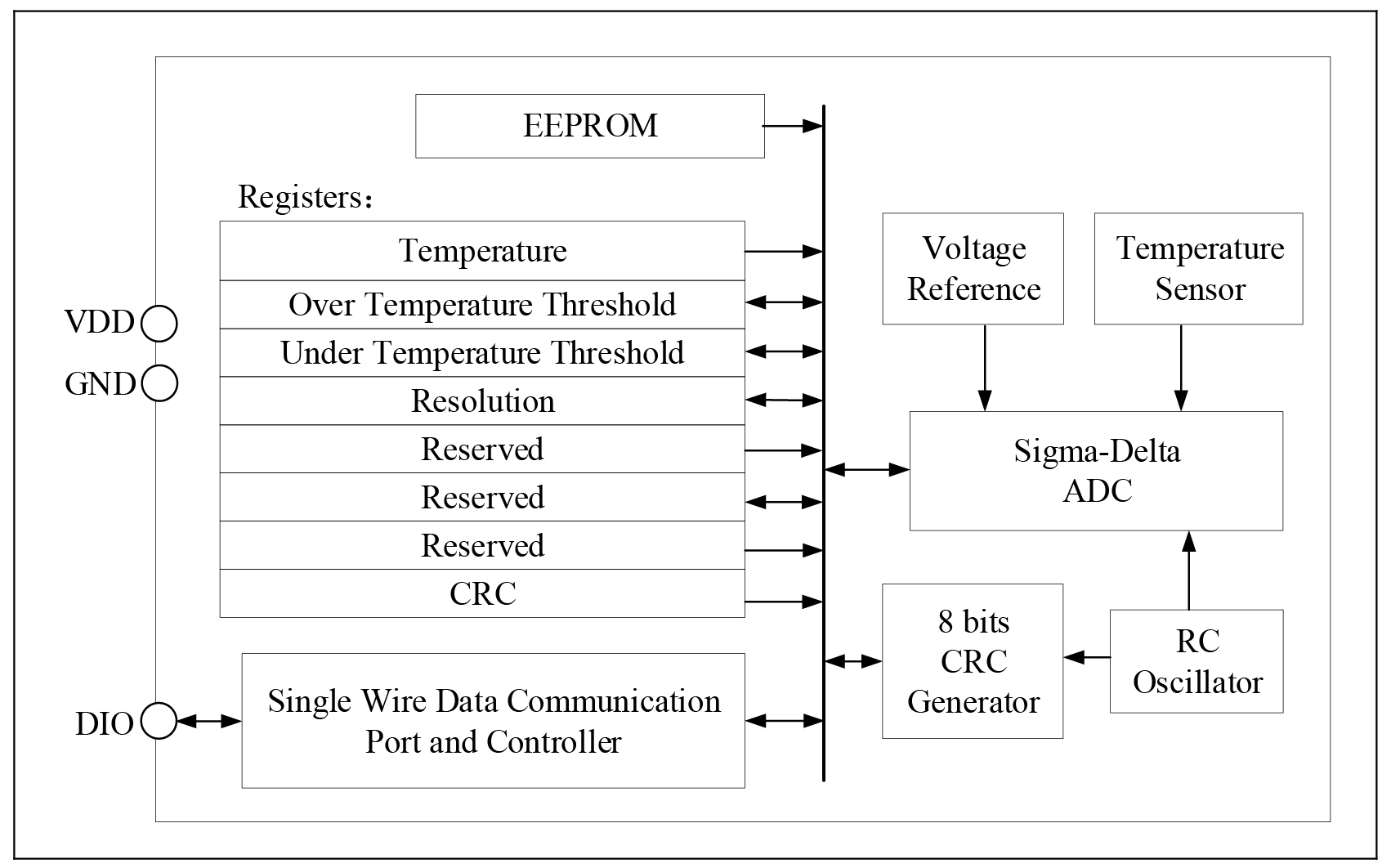

The SD5820A is a highly accurate temperature measurement IC. It supports single wire data communication and outputs 9 to 12 bits temperature readings. The maximum error is ±0.8℃ from -10℃ to +85℃ and ±1.5℃ over the full military temperature range of -55℃ to +125℃.
Over-temperature alarm thresholds can be set through internal register. Operating at “parasitic power” mode, the SD5820A derives power directly from the data line without the use of an external power supply.
Each chip has a unique 64-bits ID code useful for multi-slave communication system.
12 bits digital temperature reading with 0.0625℃ resolution
±0.5℃ typical error at -10~+85℃ range
±0.8℃ typical error at -55~+125℃ range
Single wire data communication with CRC function
Factory set 64-bits ID code
Programmable over temperature alarm threshold
2.7~5.5V power supply range
Compatible with DS18B20
Intelligence Agriculture
Industrial Temperature Measurement
Water Temperature Sensor
